OPERATION SYSTEM
INTUITIVE AND USER-FRIENDLY SYSTEM

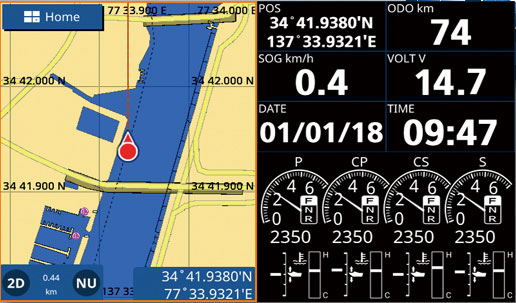

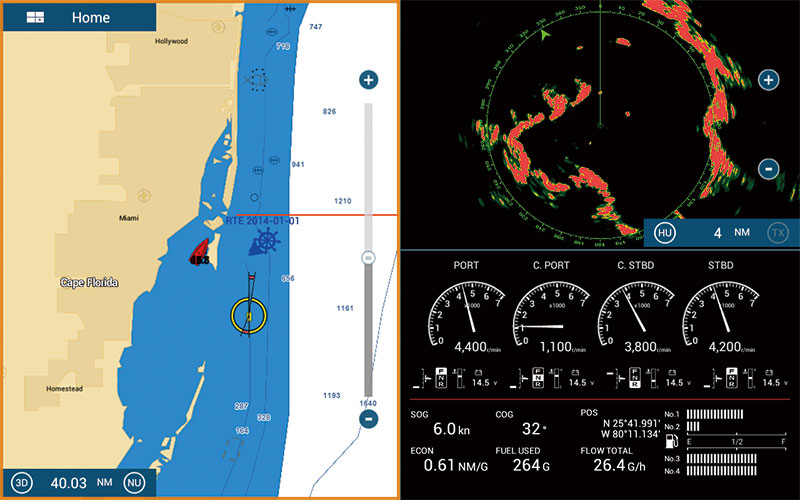

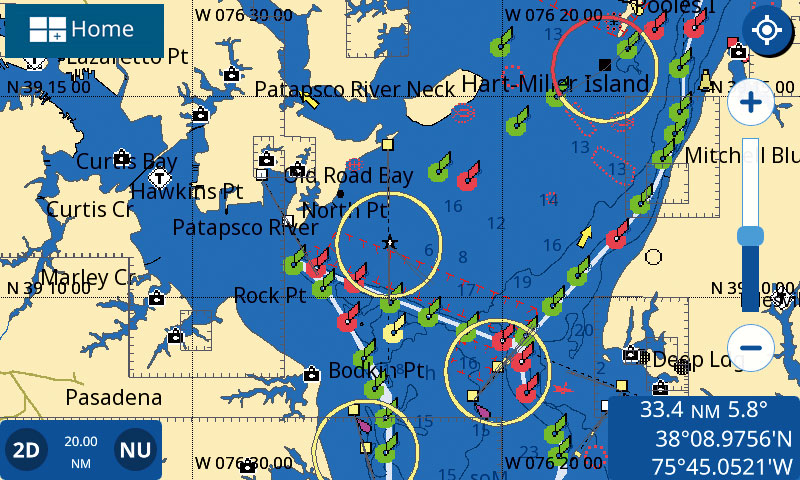

SUZUKI MULTI - FUNCTION DISPLAY (SMD)
THE INTELLIGENT TECHNOLOGY
COMES WITH BRILLIANTLY INTEGRATED DESIGN
ULTIMATE CONNECTIVITY
Never compromise on quality and customer satisfaction - We endeavor every day to bring you reliable, high quality products with latest technology to accompany you on every voyage.

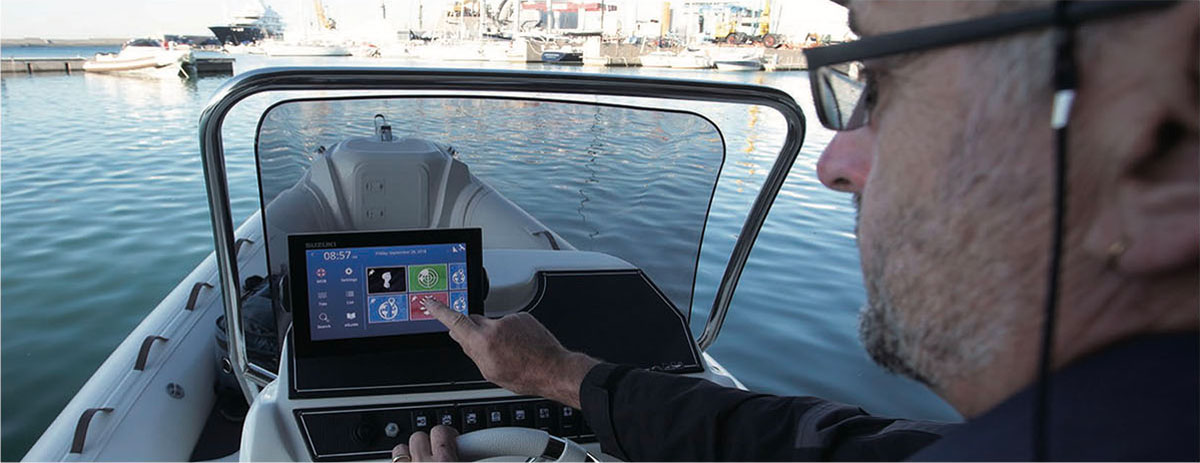

You can find your most pleasurable boating experience with our SUZUKI MULTI-FUNCTION DISPLAY (SMD). SMD is designed to allow you to access to all your Suzuki engine information and other utility functions with a single touch!
Enjoy your true boating comfort with our SMD!
The genuine fuel tank adapter is designed to be compatible with SMD
- Possible to connect to 4 tank senders
- Initial configuration is available on SMD
- Fuel tank senders are compatible with 3 specifications: EU, ABYC, and Custom

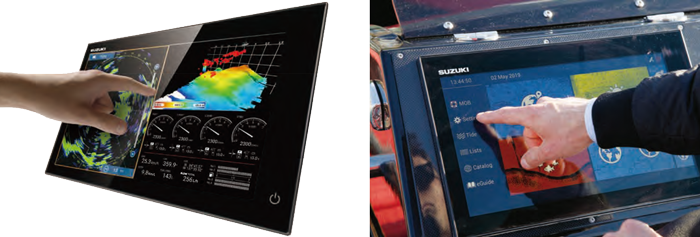

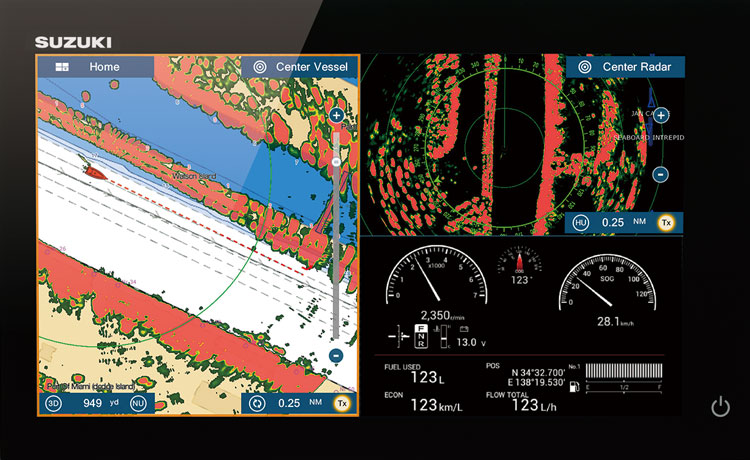

- Intuitive, easy, smooth operation with an entire multi touch screen interface. Total control at your fingertips
- Bonded all-glass LCD, sunlight viewable screen with impressive brightness, and a luxurious look

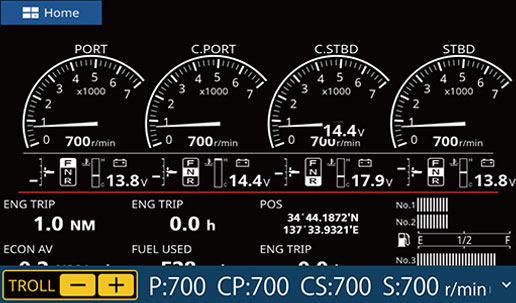

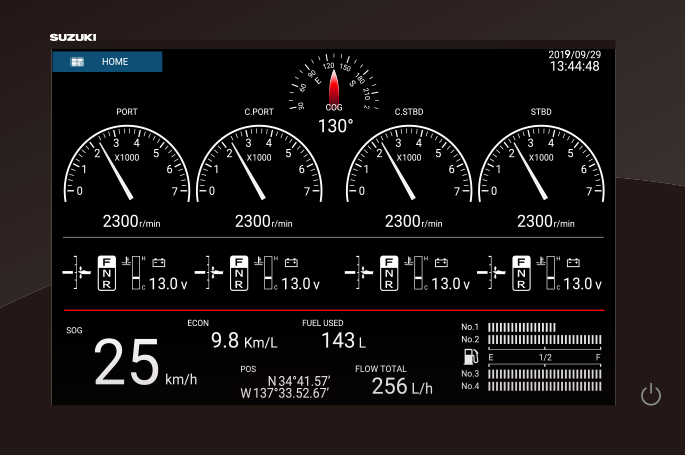

- Ease of operation with all Suzuki engine information integrated on one display

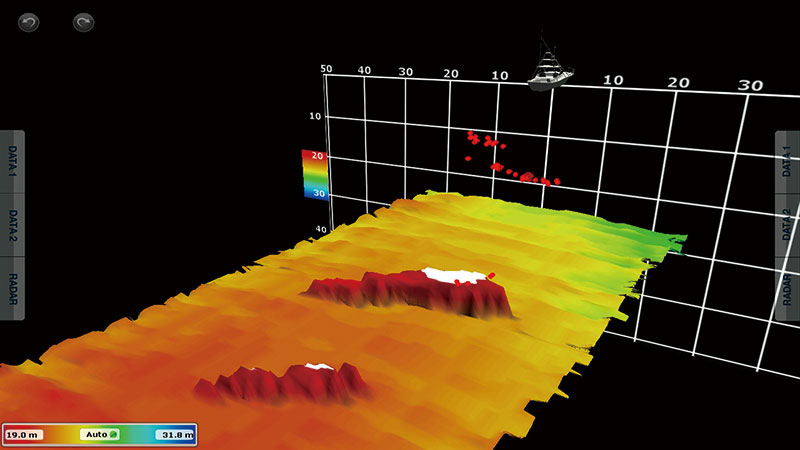

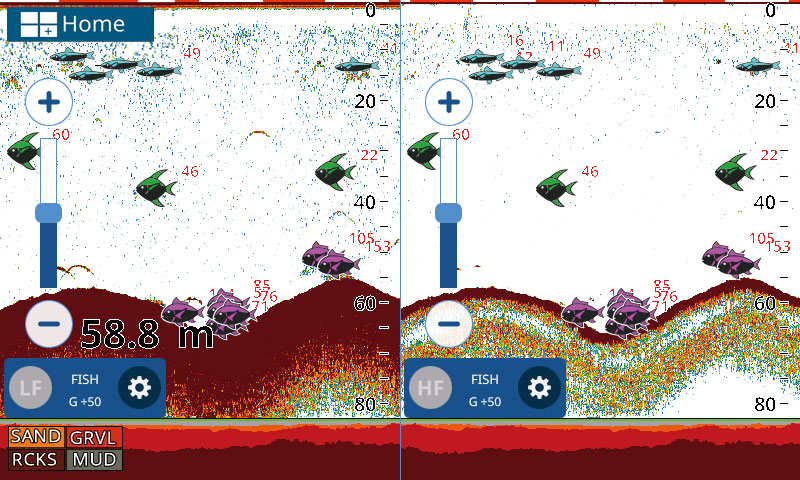

- All latest and unique technologies such as TruEcho Chirp™, Accu-Fish™, RezBoost™ combined in one display provide you the most exciting fishing experience*
Requires FURUNO transducer to utilize the built-in fish finder. Please contact your nearest FURUNO dealers for further information.

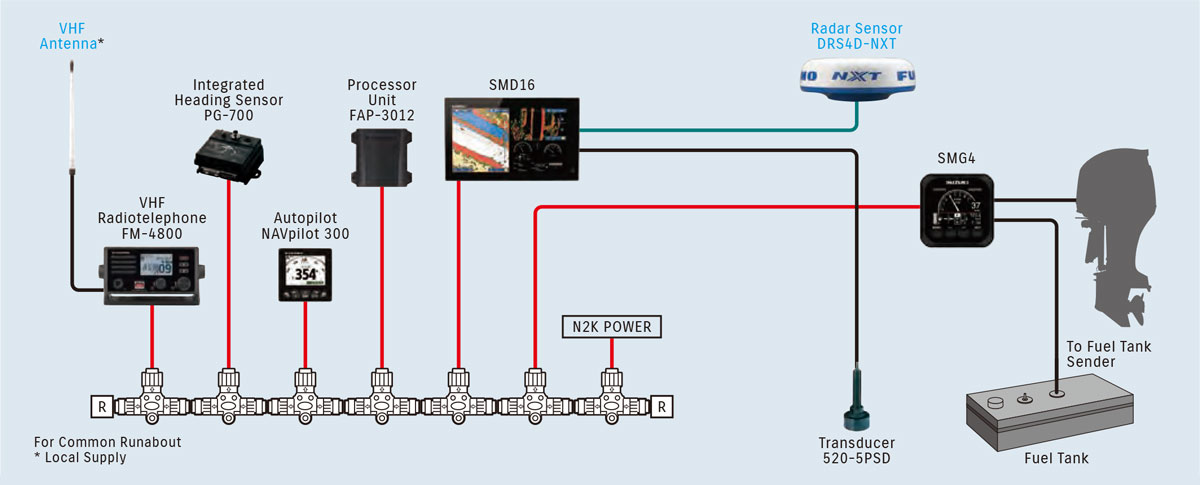

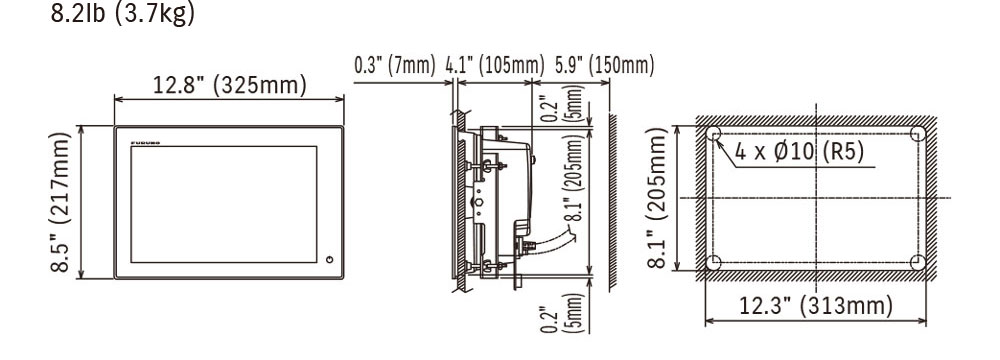

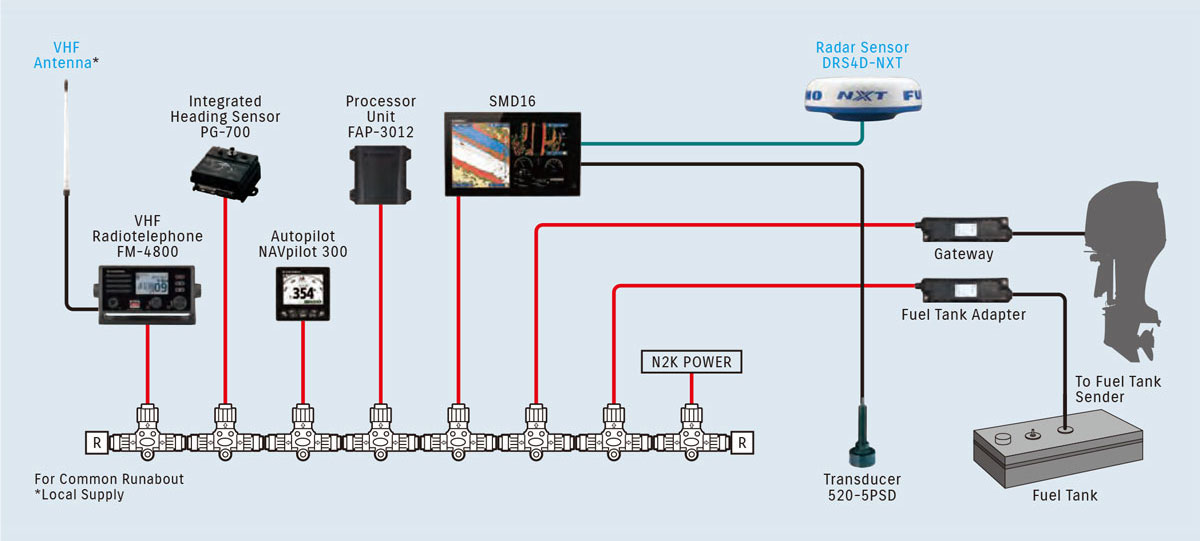

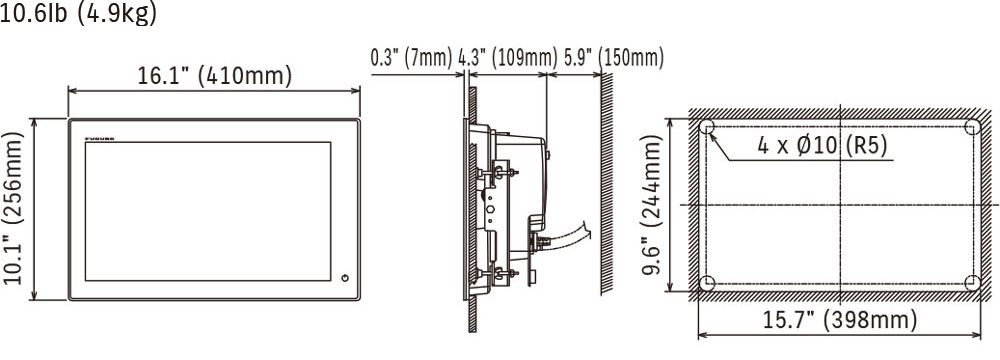

CUSTOMISING YOUR DISPLAY SMD16 & SMD12
Requires FURUNO transducer to utilize this feature. Please contact to local FURUNO Dealers for more details.
NMEA2000
Ethernet
Other

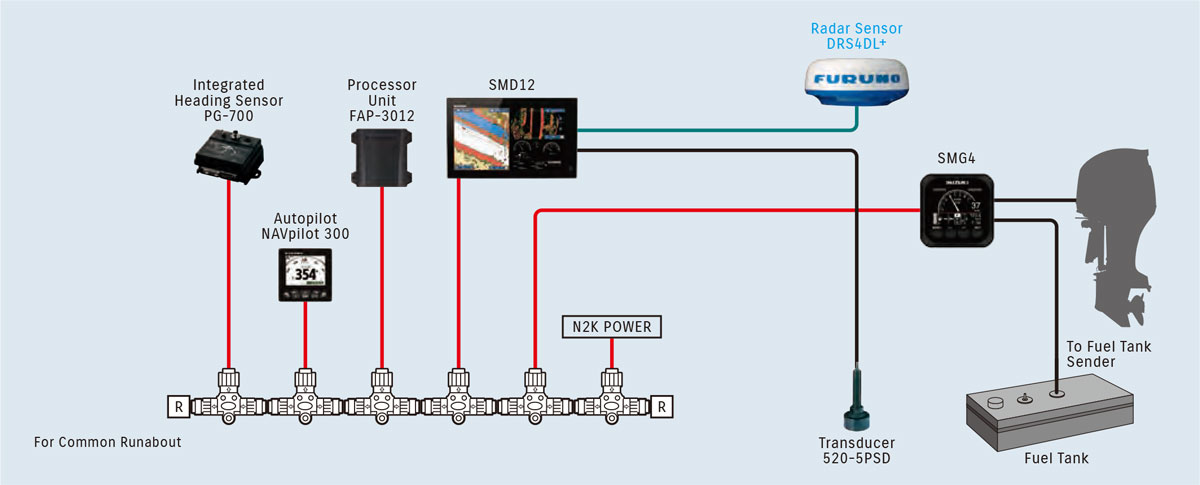

NMEA2000 T ConnectorProduct suggestion only - Not an installation diagram. Please contact your local Authorized Suzuki Dealers for more details.
Product suggestion only - Not an installation diagram. Please contact your local Authorized Suzuki Dealers for more details.
NMEA2000EthernetOtherNMEA2000 T Connector

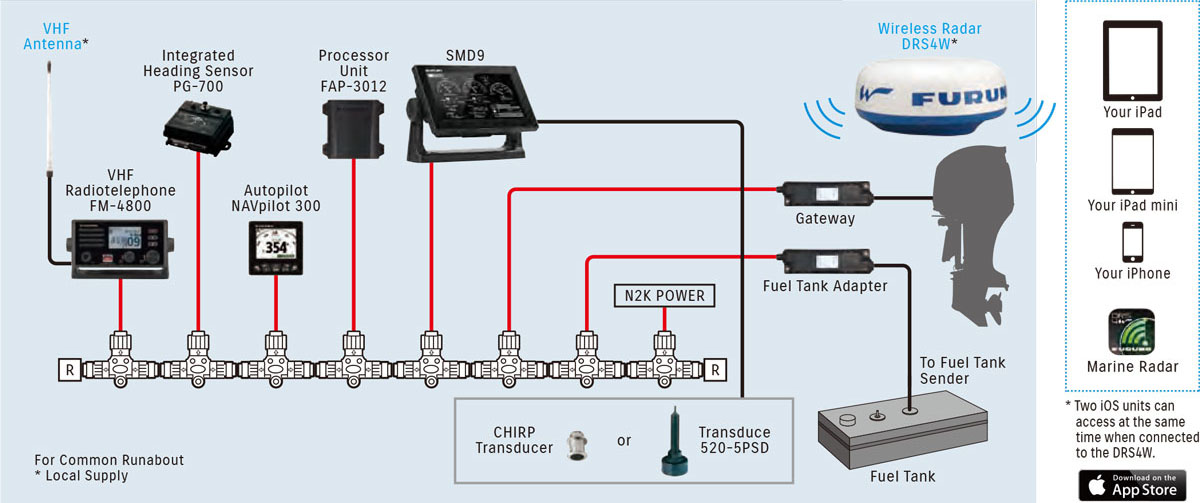

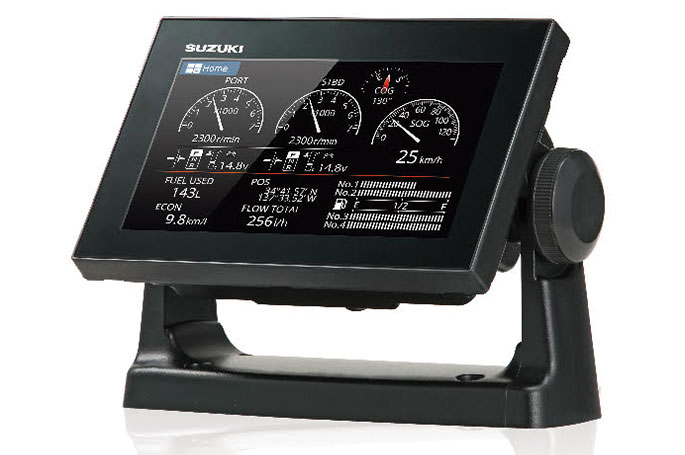

CUSTOMISING YOUR DISPLAY SMD9 & SMD7
Requires FURUNO transducer to utilize this feature. Please contact to local FURUNO Dealers for more details.
Product suggestion only - Not an installation diagram. Please contact your local Authorized Suzuki Dealers for more details.
NMEA2000EthernetOtherNMEA2000 T Connector

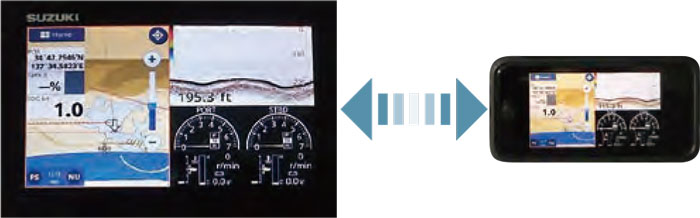

Combination with iOS/Android device increases the controllable station via Wireless LAN
The following App supports the mirror control of SMD7/9 over an iOS/Android device
App : Mirror Control (free of charge)
Seller : AvMap srl
For iOS
(App Store)
For Android
(Google Play)

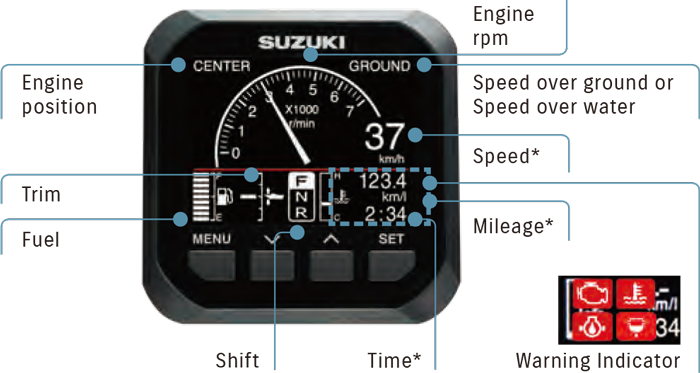

SUZUKI MULTI-FUNCTION GAUGE(SMG4)
ALL INFORMATION IN ONE PLACE
When you are in the water, it is vital to acquire the information of engine performance and condition whenever you need. That’s exactly the thinking behind our SMG4 - All you need for effortless and relaxing boating in one simple, reassuring and reliable device.

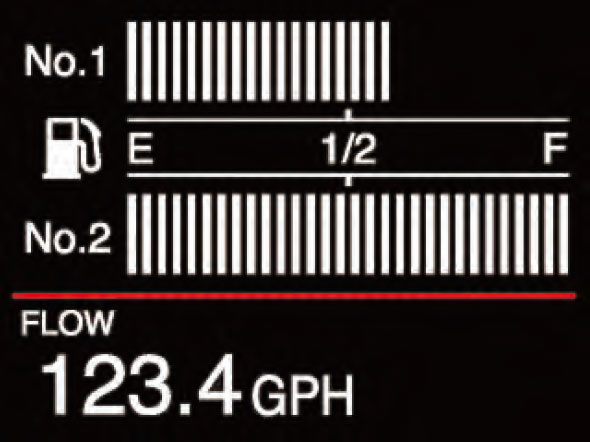

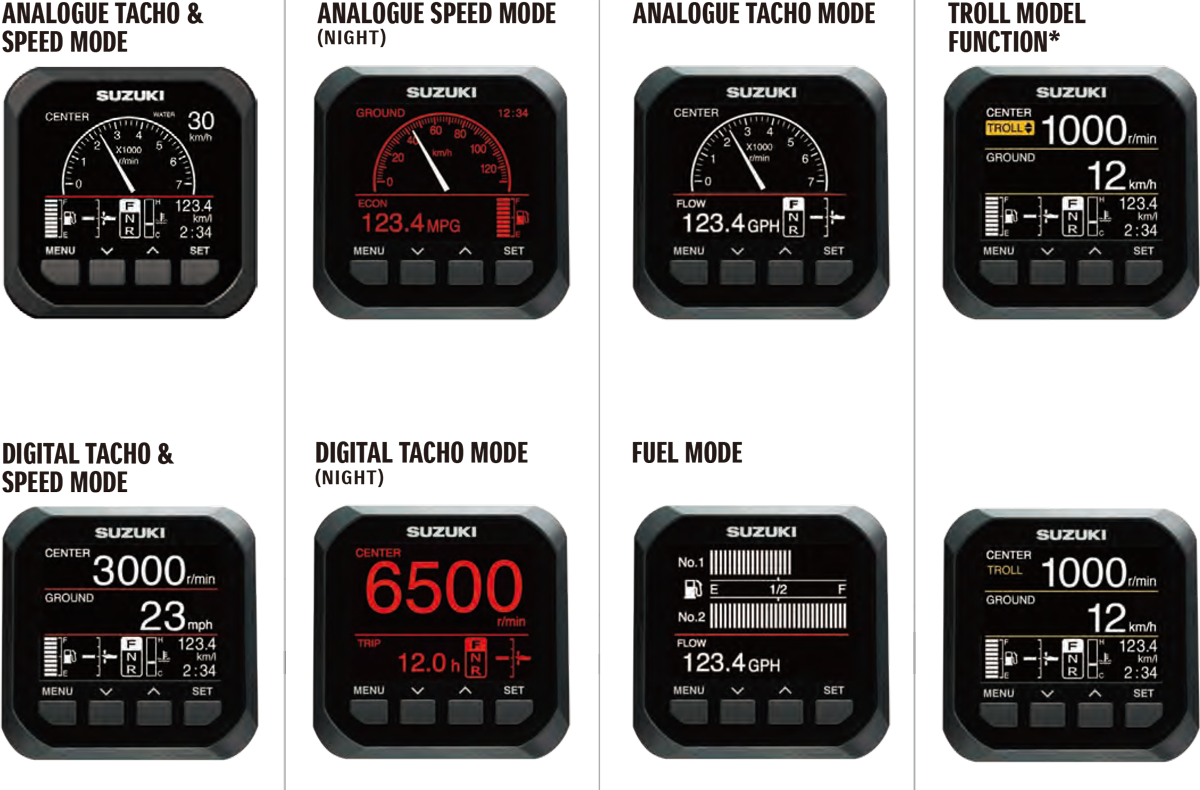

You can operate your Multi - Function Gauge in either digital or analogue display mode, depending onyour preference. You can also zoom in on any individual elements of the display, making it even moreclear to read. No matter what situation, the DAY and NIGHT settings are available to use flexibly.
Troll Mode Function allows you to control troll mode from the SMG4. This function is available from 2019 year models and can be only used by models which adapted troll model.
- Viewing a wide range of information, includingengine rpm, speed and trim angle, as well asengine temp, fuel economy in 13 different units, and total fuel flow for multiple engine installations.
- Automatically receiving alerts from the engine's sensors and warning systems.
Speed sensor or GPS module will be required to display Speed, Mileage, Trip distance,Time information（SOW) : Speed over water.
| GPS Module | Speed sensor | |
|---|---|---|
| Speed |  |
(SOW) |
| Mileage | |
(SOW) |
| Trip distance | |
(SOW) |
| Time | |
N/A |
DIAGNOSTIC MOBILE APP
ADVANCED SERVICE TOOL
SDS Mobile works in tandem with our Multi-Function Gauge and Multi-Function Display.
Simply download the App, which is available on iOS and Android to your smartphone: you don’t need a separate device.
When you email your data scanned from QR code, the dealer will be supplied of information including engine number, number of hours since the last oil change, total hours of operation at different rpm, and technical information.
DENSO WEB owns the right of name and logo of QR code.

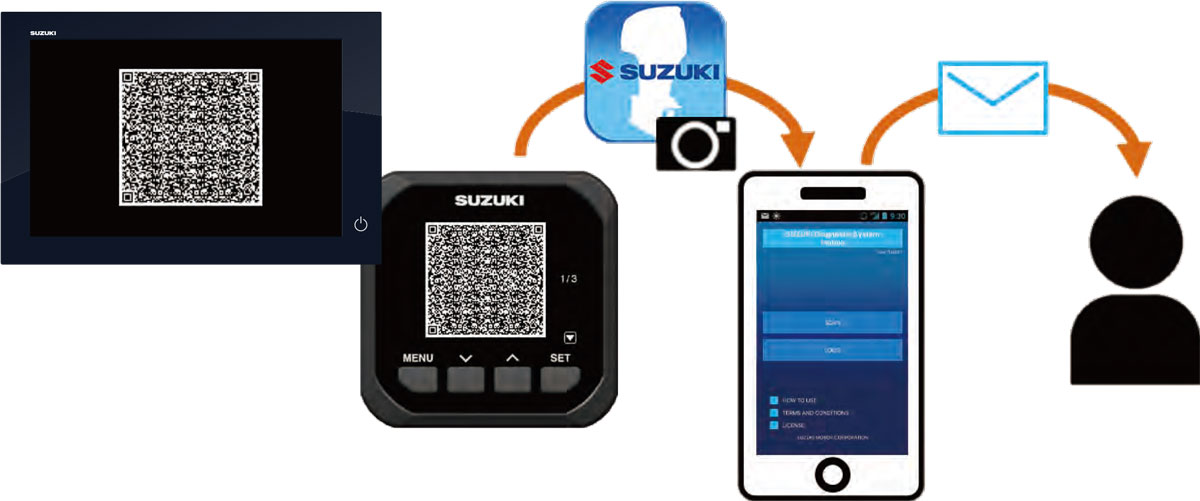

1. The Outboard sends engine data and converts it into a QR code displayed on the Multi-Function Gauge or
Multi-Function Display.
2. With the SDS Mobile App, you can then scan the QR code on the Multi-Function Gauge or Multi-Function
Display with your phone. The engine data will be stored on your smart phone.
3. You can then send the engine data via email to your Suzuki Dealer.
ANALOGUE GAUGE
CLASSIC DESIGN NEVER GO OUT OF STYLE
At Suzuki,we understand that everyone enjoys boating in their own unique way. Some may preferthe latest digital instruments, some may prefer classical style. Our Suzuki Analogue Gauges aredesigned to fit individual needs.

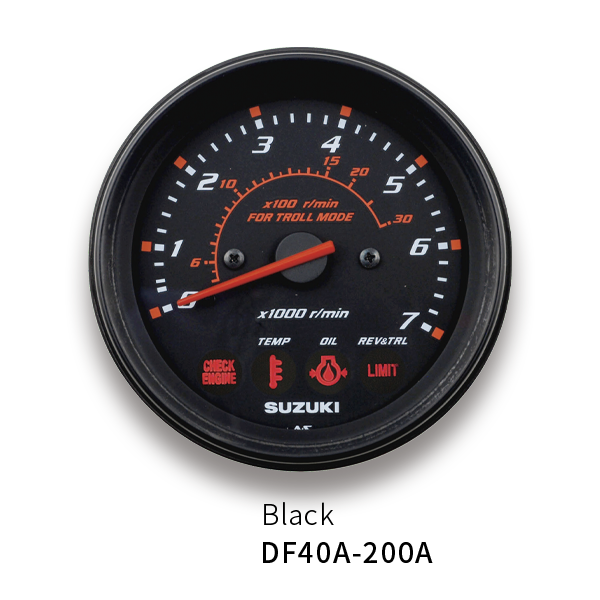

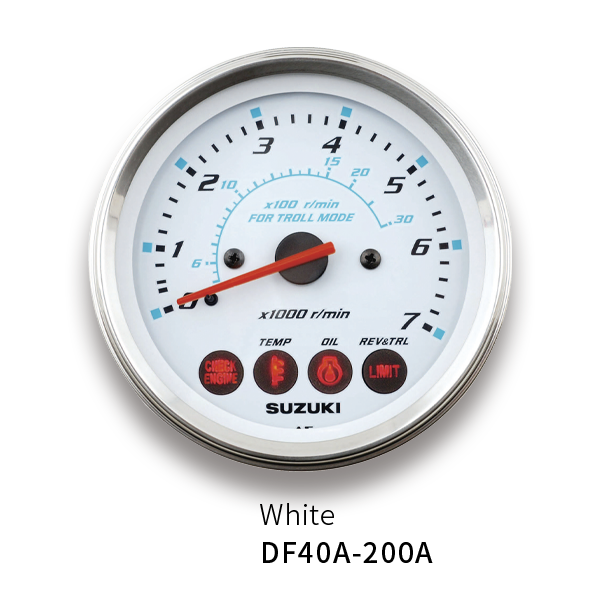

Our full-scale tachometers indicate engine revs up to 7000 rpm, with options including caution lamp and troll mode.

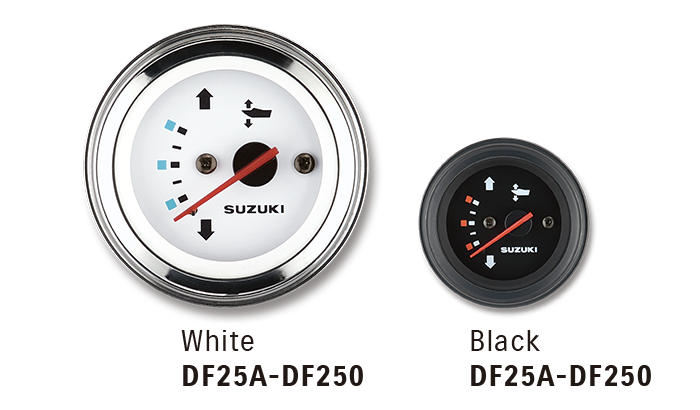

TRIM GAUGE
Magnetic-type gauge shows trim angle for optimum performance and efficiency.

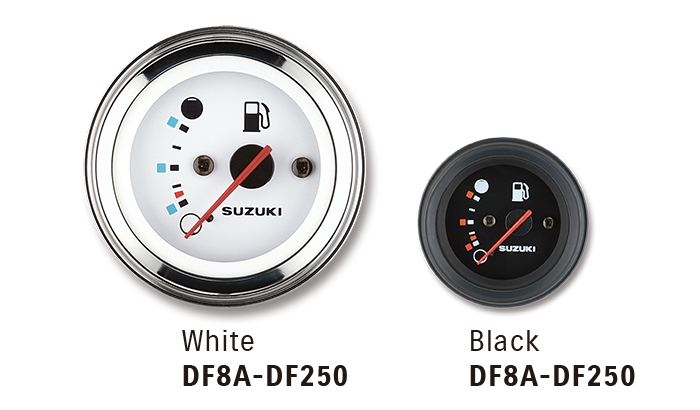

FUEL GAUGE
Simple and easy to read on the water.

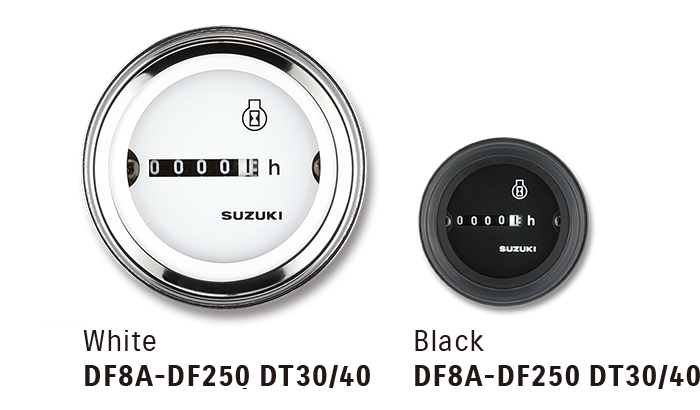

HOUR METER
Powered by a 12-volt electric motor, this meter shows how many hours’ operation your outboard has completed, so you can tell precisely when routine maintenance and service are required.

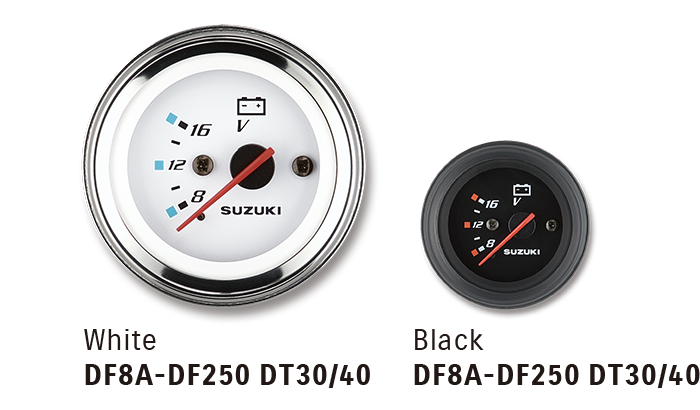

VOLT METER
Monitors the charging system to help keep your outboard motor running at its best.
WATER-PRESSURE GAUGE
Bourdon-tube type gauge measures cooling-water pressure.

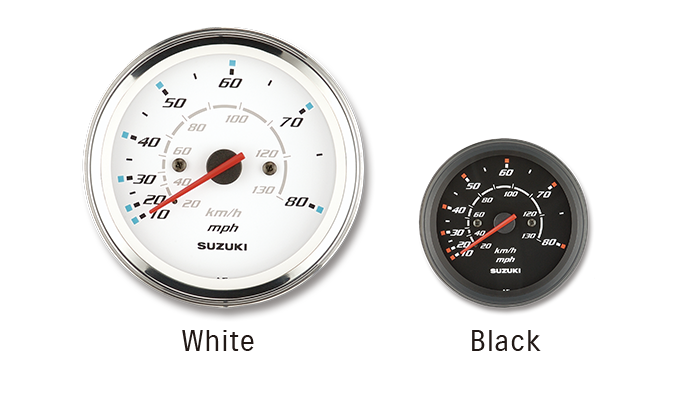

SPEEDOMETER
Bourdon-tube type speedometer with readings in km/h and knots.

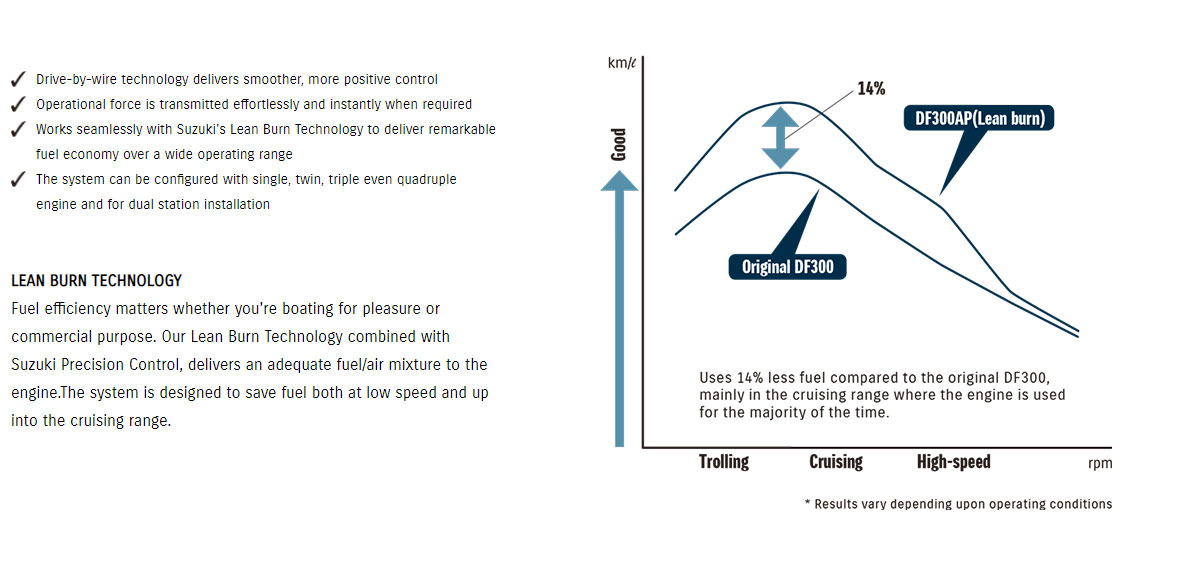

SUZUKI PRECISION CONTROL (SPC)
OUR SOPHISTICATED DRIVE-BY-WIRE SYSTEM
Suzuki Precision Control (SPC) uses our most advanced technology to give you precise, effortless control for truly relaxing and enjoyable boating experience. While conventional control systems use mechanical cables to activate the throttle,with Suzuki Precision Control,a computer sends signals to the engine electronically by wire, reduce friction and making shifting easier and smoother. Plus,the system processes and transmits commands in real time to actuators in the engine,delivering precise,instant throttle responses for greater control and accuracy. It also has built-in features to help protect the engine from damage, so you can enjoy wour boating life to the full.
MECHANICAL REMOTE CONTROL
A FRESH OUTLOOK FOR CONVENTIONAL SYSTEMALWAYS KEEPING THE BOAT CRUISING ALONG
For reliable, easy boat control that you desire, we are pleased to offer a wide range of Mechanical Remote Control Boxes. Simple design but carrying fully essential functions that you can count on in whatever conditions.

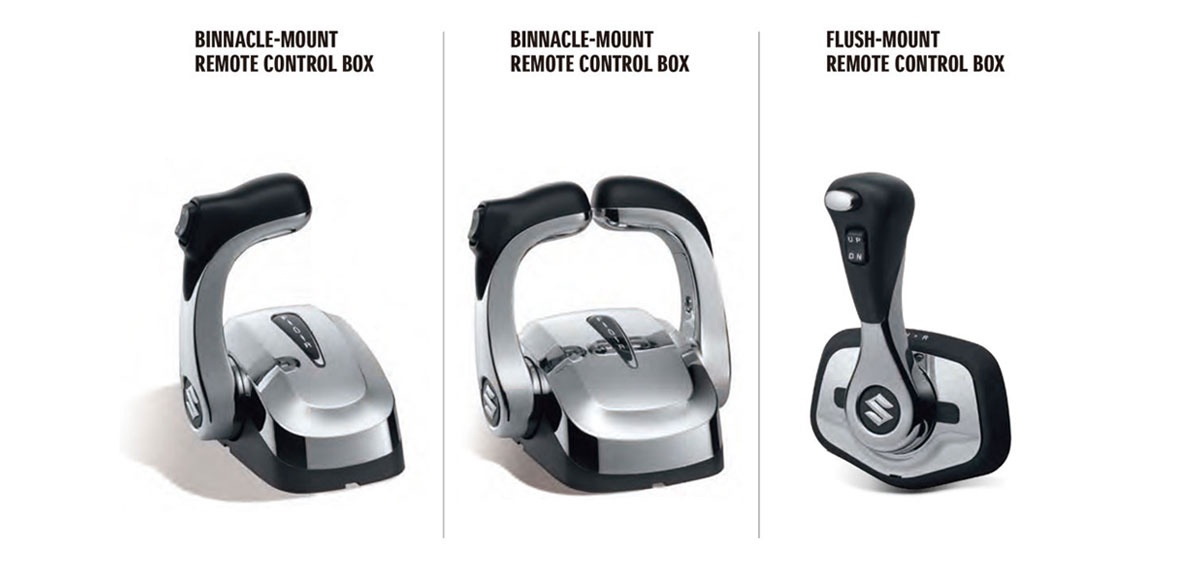

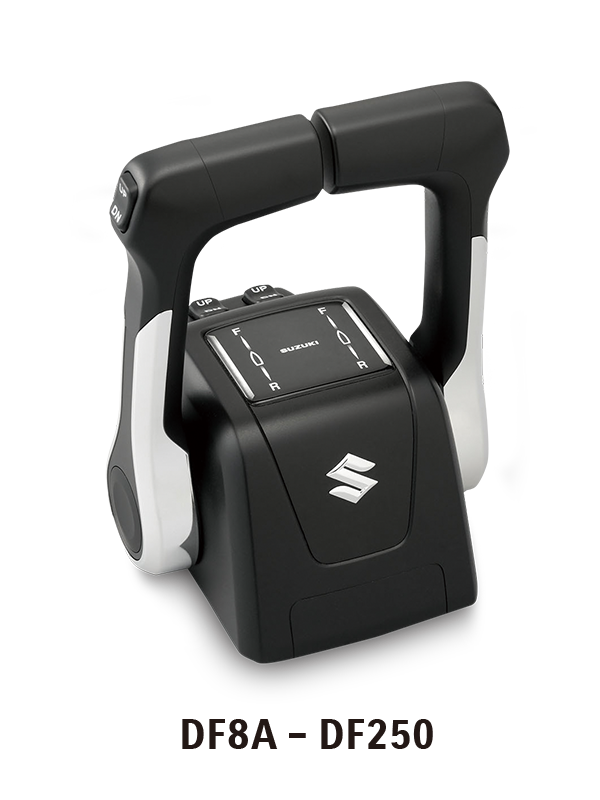

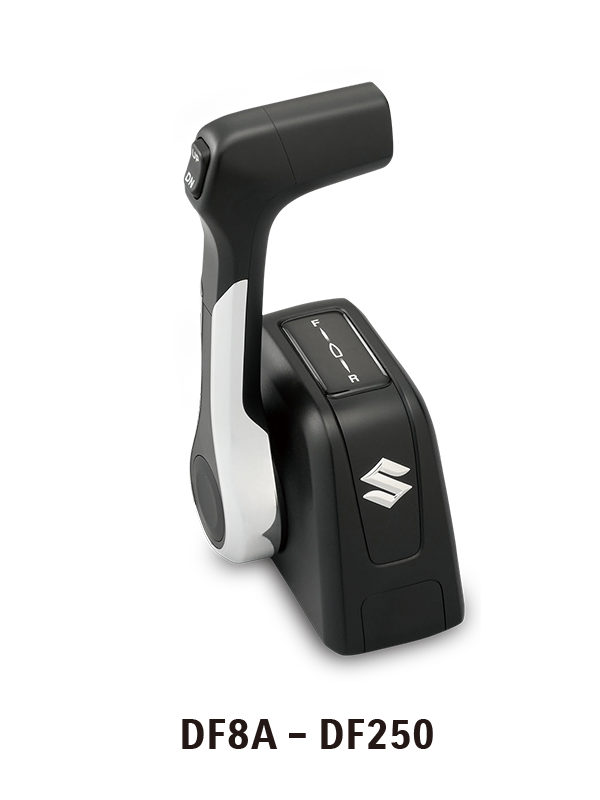

BINNACLE-MOUNT REMOTE CONTROL BOX
FLUSH-MOUNT REMOTE CONTROL BOX

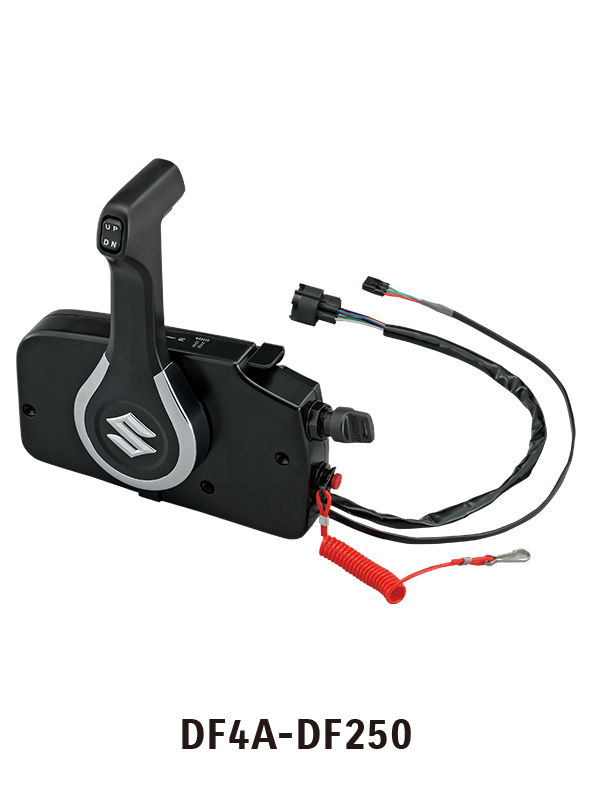

SIDE-MOUNT REMOTE CONTROL BOX
- Unique chamfer grip is elegant and eye-catching
- Intergrated design matches Multi-Function Gauges to give your console a harmonious view
- Lever has been fully ergonomically tested for most hand sizes
- Shifting is effortless and positive
SWITCH PANELS
FOR SUZUKI PRECISION CONTROL AND MECHANICAL REMOTE CONTROL SYSTEM
In our constant pursuit of easier handling and improved convenience we offer a range of panels and options for your Suzuki Remote Control System.
MAIN SWITCH PANEL(SINGLE IGNITION WITH EMERGENCY-STOP SWITCH)
CONTROL PANEL(FOR DUAL ENGINE AND FOR QUADRUPLE ENGINE)
CONTROL PANEL(FOR SINGLE ENGINE)
CONTROL PANEL(FOR TRIPLE ENGINE)

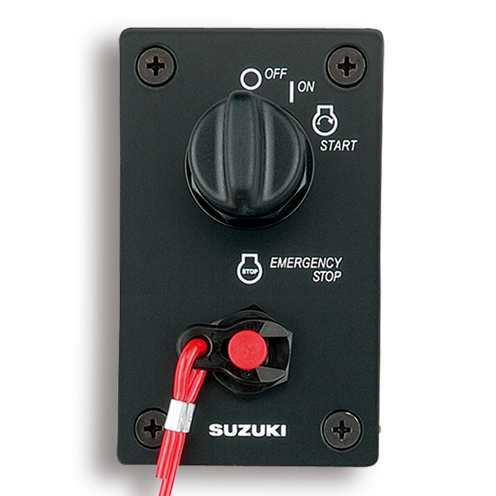

IGNITION SWITCH PANEL
(SINGLE IGNITION WITH EMERGENCY-STOP SWITCH)
IGNITION SWITCH PANEL
(DUAL IGNITION WITH EMERGENCY-STOP SWITCH)

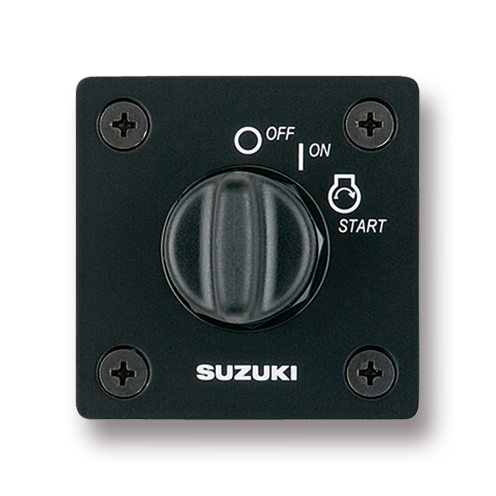

IGNITION SWITCH
PANEL SINGLE IGNITION

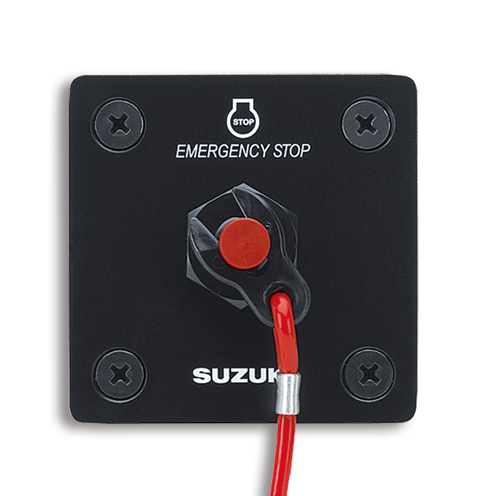

EMERGENCY
SWITCH PANEL

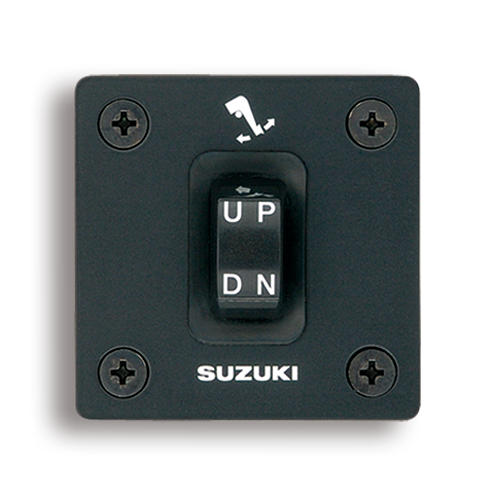

PTT
SWITCH PANEL

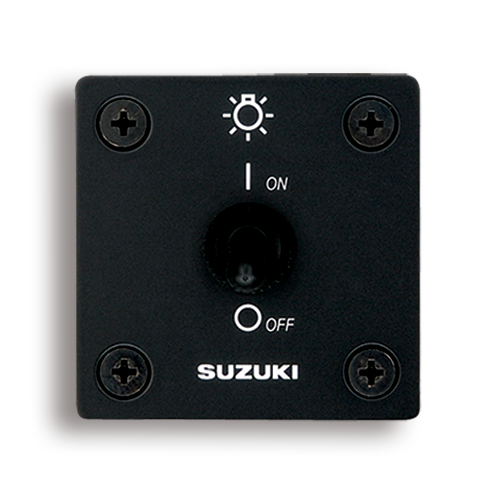

LIGHTING
SWITCH PANEL
These panels are designed to bring all the controls for your outboards together whether you have a single rig or multiple outboards. Ergonomic buttons make it easy to start and stop your engine at the push of a button and control trim and tilt with ease. Multiple outboards can simply be synchronised for control from one set of buttons.
KEYLESS START SYSTEM
WORLD-FIRST OUTBOARD TECHNOLOGY
The system works by transmitting a unique access code from the keyless fob to the engine’s starting system. Without the keyless fob, the engine won’t start, making it a completely effective theft deterrent. And for total peace of mind, we’ve even designed to keyless fob to float, so if you’re unlucky enough to drop it overboard, you can easily retrieve it.
Suzuki original engine starting system features an immobilizer function for added peace of mind. IC access
codes installed in the keyless fob and engine must match for the engine to start.
This prevents starting the
engine with the wrong key making the system a good theft deterrent as well.
Suzuki original engine starting system offers a variety of functions.
The keyless fob is easy to carry
and all you need to enjoy stress-free engine start for greater boating pleasure.
One step ahead of the
competition, the Suzuki Keyless Start System requires no mechanical key so the keyless fob remains safely in
your pocket.
The easy to carry keyless fob remains safely in your pocket reducing risk of a lost key. The keyless fob is waterproof and floats so should it ever go overboard it is retrievable.
SUZUKI PROPELLERS
UNLOCK THE FULL POTENTIAL OF YOUR BOAT WITH OUR EXCELLENTLY ENGINEERED PROPELLERS
All Suzuki propellers are designed specifically for your outboard to give outstanding performance for long reliable and trouble-free service.

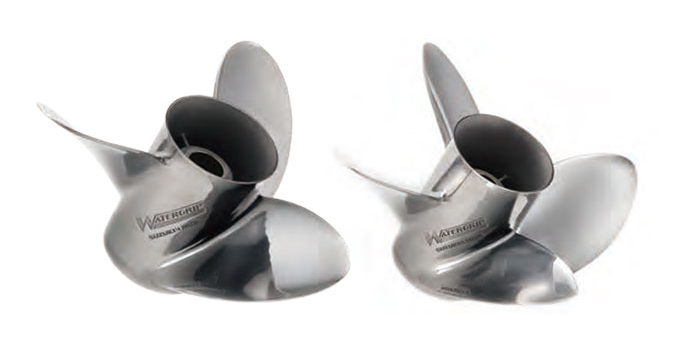

WATERGRIP
ULTIMATE POWER DELIVERY
WATERGRIP is a new stainless-steel propeller series offering accurate response to your operation. With efficient conversion of engine power into propulsion, this propeller series ensures you a bigger, faster, stronger performance for your outboard.
WATERGRIP
DF150A-300AP
The WATERGRIP series will be the new standard for Suzuki propeller. The new interchangeable and square shared bush system is designed not only to be replaced easily and quickly when required, but also to accurately and efficiently convert power from the engine to thrust through the propeller.

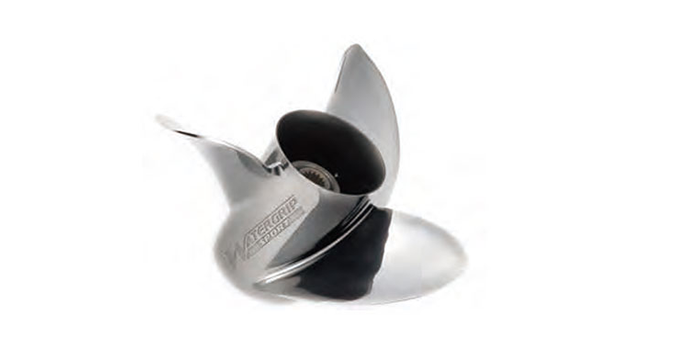

WATERGRIP SPORT
DF150A-300AP
In addition to ease of maintenance and efficiency of power conversion, the WATERGRIP SPORT propellers feature a high rake blade design, which delivers excellent acceleration and exceptional top speed. These propellers are ideal for lightweight sport boats as they give remarkably stable thrust when turning which lead to superior maneuverability and ensure your exciting boating.

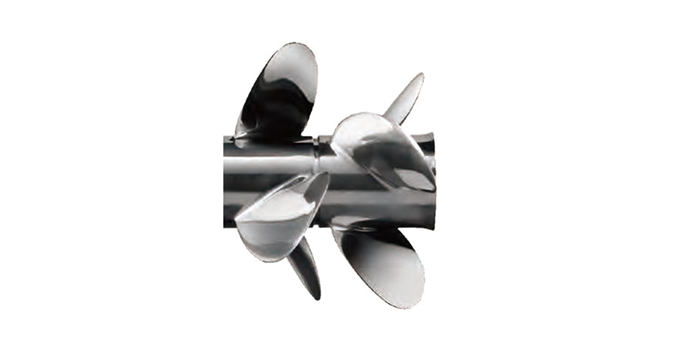

WATERGRIP DUAL
DF300B/DF325A/DF350A
New flagship models, the DF300B, DF325A, and DF350A introduced the Suzuki Dual Proppeller System, an industry-leading technology that is truly a revolution in innovation. Big engines demand more efficient conversion of engine output into propulsion.With two contra-rotating propellers operating simultaneously, the conversion efficiency becomes greater as does stability, grip and manoeuvrability.
PROPELLER BUSH ADVANTAGES

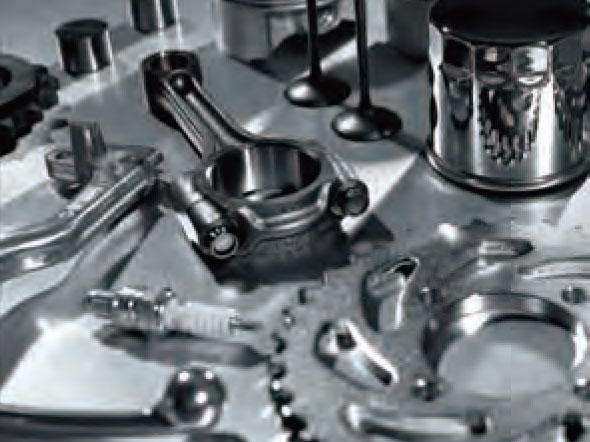

CARE AND MAINTENANCE ITEMS SUZUKI COLLECTION
KEEP YOUR SUZUKI 100% SUZUKI
Regular maintenance is essential to keep your outboard running smoothly and reliably. Different components require maintenance or replacement at different intervals. We integrate our unique technologies and customer insight to create and deliver a variety of superior protections for your outboard.
GENUINE OIL & CHEMICAL
EMPOWERING YOUR OUTBOARDS TO PEAK PERFORMANCE
In the 1980’s, Suzuki started the development of lubricants in pursuit of the ultimate performance. The lubricant is named “ECSTAR” as it is our guiding “STAR” towards an “ECSTATIC” performance. As the expectation towards our product evolve, the same attention to performance is required for durability and environmental protection. With the high technology cultivated through its long history and dedicated engineering, Suzuki has precisely reformulated “ECSTAR” to satisfy and exceed these requirements.
By enhancing and drawing out the best performance - ECSTAR will give you a Suzuki experiencethat others could not!
-
Fuel SavingsThe Genuine Formulation provides the high performance and help to improve fuel economy.
-
Outstanding Engine ProtectionThe innovative lubricating technology achieves thermal stability, which contributes to the ultimate engine protection even when starting engine in cold climates.
-
Clean Engine for Longer LifeCleaning performance helps to prolong the engine life.
Availability may differ in some regions. Please contact your local Authorized Suzuki dealers for more details.
SUZUKI COLLECTION
MAXIMIZING YOUR EXCITEMENT!
Going through a long history, whatever fields we contribute, SUZUKI strives to bring to worldwide customer not only the excellent performance products but also the variety of merchandises and goods. Never compromise on effort to ensureSuzuki fans a vivid life, never stop creating Suzuki style day by day!
For a full range of line-up, please contact your local Authorized Suzuki dealers.
UTILITY EQUIPMENT
ALL YOU NEED IS SUZUKI GENUINE ITEMS

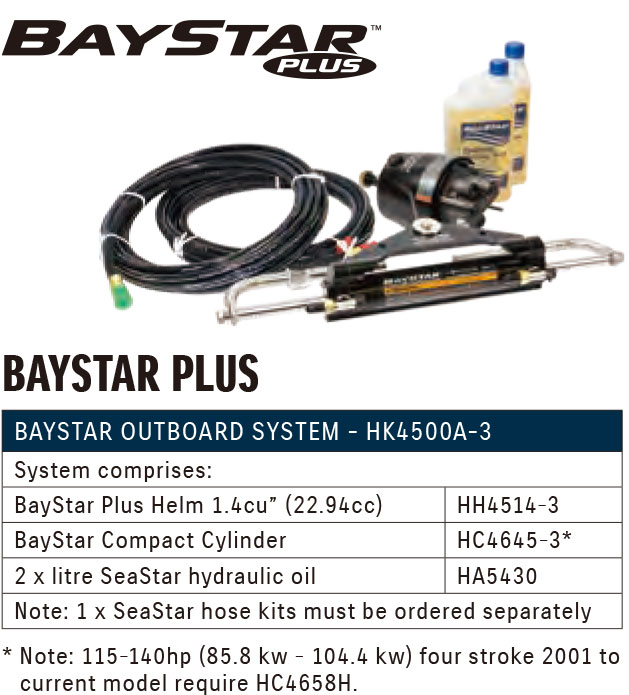

Our utility equipment range makes it easy to customise your outboard to suit your individual boating needs and preferences. You have a huge choice of options, from intergrated tiller handles, steering extension and extra fuel line systems to flush hose attachments, engine covers and rigging tube - All designed and manufactured specifically for our outboard and engineering standard.

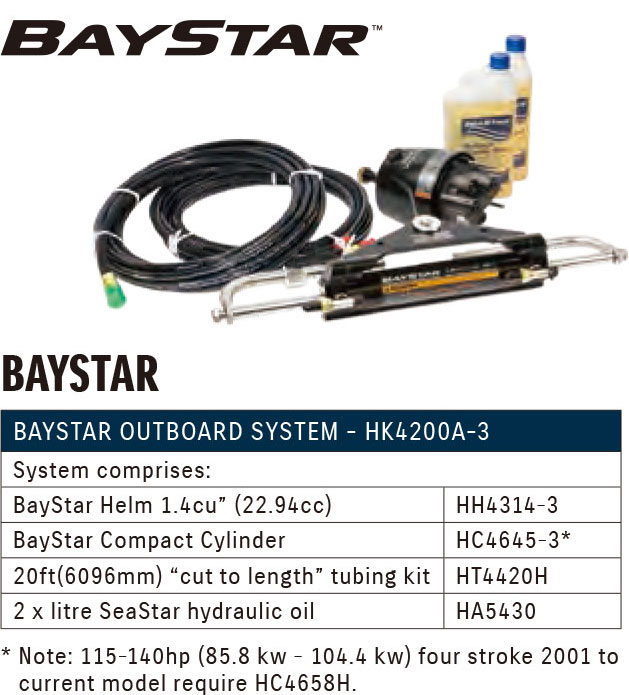

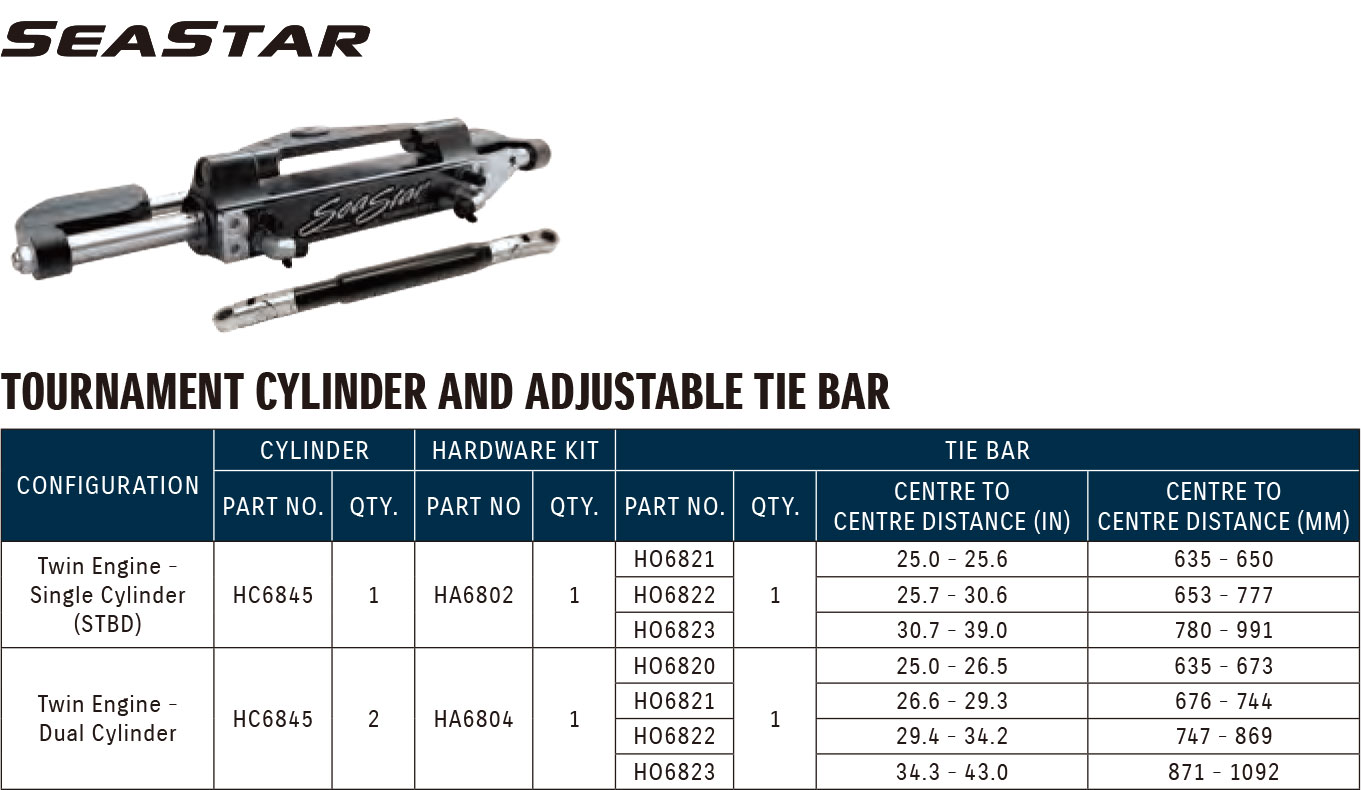

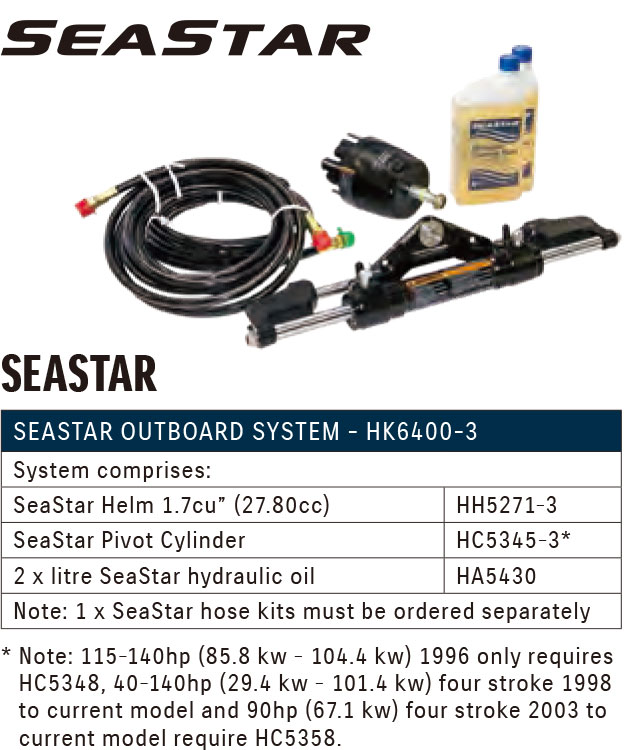

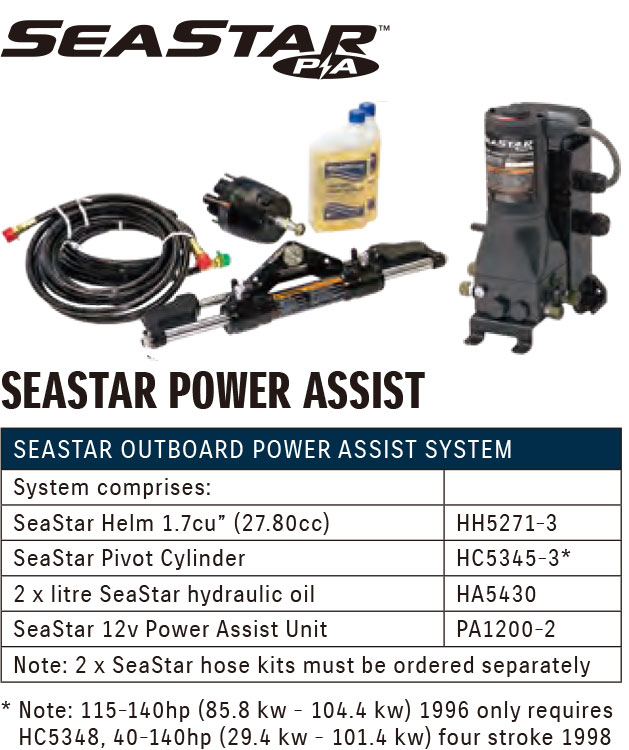

Order taking, delivery, technical support and warranty for these products are handled by SeaStar Solutions.Please consult your local SeaStar Solutions distributor or dealer if you need more detail for product information, price, availability and all business terms.

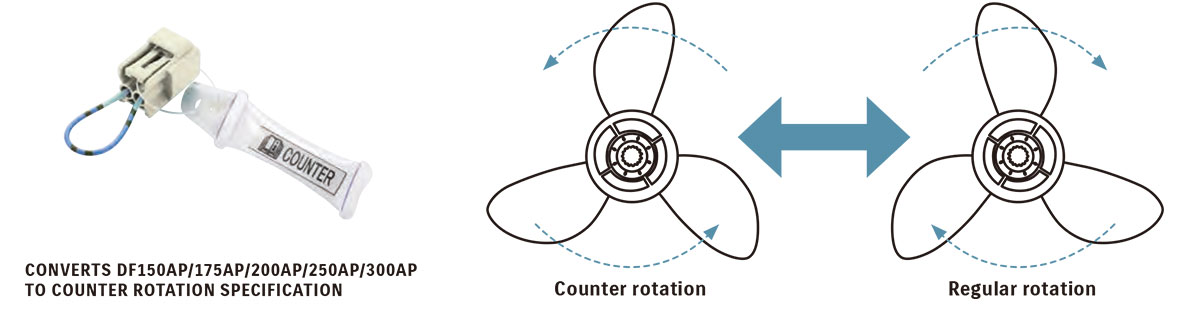

If you have a large boat with two engines, you generally need to pair a standard rotation outboard with a counter rotation model. Our Suzuki Selective Rotation system allows you to select the rotation direction on Suzuki outboards. So instead of buying a dedicated counter rotation model, all you need is a standard outboard, a suitable propeller, and our simple Selective Rotation Connector.
